Specifications
| Chipset | CPU: Qualcomm IPQ5000(Optional IPQ5010) |
| System Memory | Default DDR3 256Mbyte |
| SPI NAND Flash | Default 128Mbyte (Optional 256Mbyte) |
| Expansion | 1 x PCIe 2.0×1 (Optional PCIe 2.0×2)
(Optional 1 x PCIe 2.0+USB2.0 or 1x USB3.0) 1x 2.5G SGMII 1x 1000M Ethernet MDI 2.4G 2T2R 802.11B/G/N/AX 576Mbps, B mode@20dBm(Max) (Optional BT5.1 1T1R) |
| Software | Qualcomm QSDK
Latest Openwrt (In Development) |
| Environmental | Temperature: Operating: -10ºC to 65ºC, Storage: -20ºC to 85ºC
Humidity (non-condensing): Operating: 10% to 98%, Storage: Max. 95% |
| Dimensions | L*W*H = 59.8*35.3*4.6mm（±0.2mm） |
IPQ5000 Block Diagram
IPQ5010 Block Diagram
Board Block Diagram
Customization Options
UniElec have engaged in providing global customers with professional ODM/OEM service of customized stable and
cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,
Software and Package as below customization options for this product. Contact us at sales@8.222.163.68 for more
detailed info.
| 姓名 | Customization Comments | UniElec Customization |
| SPI NAND Flash | Change to 256Mbyte | Supported |
Ordering Information
| Models | Comments |

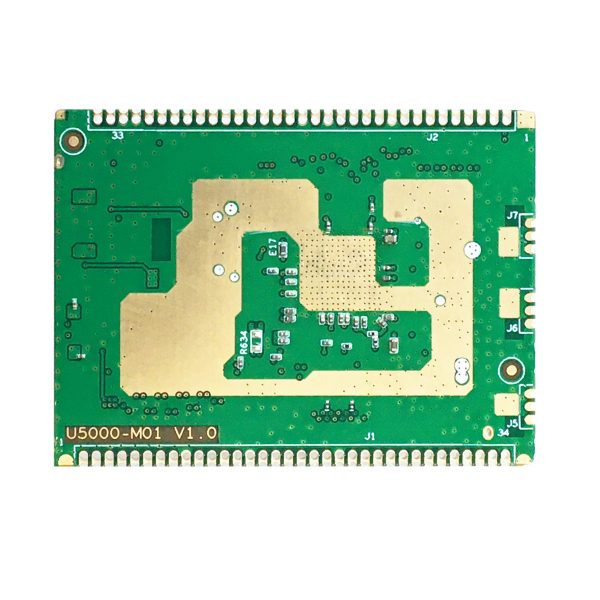

| U5000-M01 IPQ5000 CPU, ONE PCIe | 128MB NAND Flash and 256MB DDR3 RAM |
| U5010-M01 IPQ5010 CPU, USB3.0 OR PCIe2.0x1 + USB2.0 | 128MB NAND Flash and 256MB DDR3 RAM |
