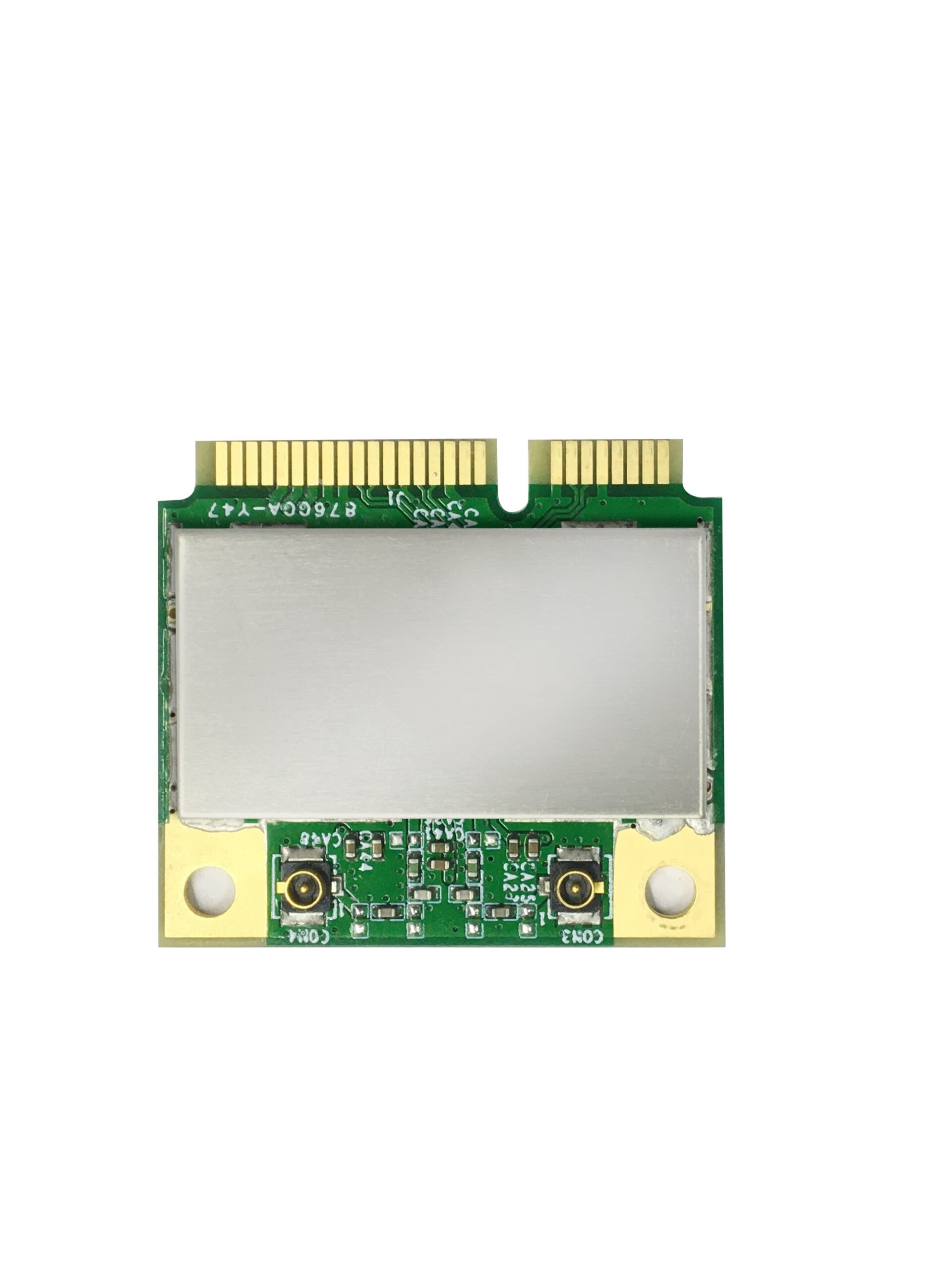

MT7613A 5.8G Wi-Fi Module_U7613A-H1

Specifications

Chipset	CPU: MTK MT7613A Internal PA/LNA/SWITCH
Expansion	Normal Gold Finger MINIPCIE
Wireless	5.8GHz 2T2R 867Mbps 11ac, 6M@23dBm (Max)
DC Power	1x DC MINIPCIE Connector: 3.3V@1A
Power Consumption	3 Watt (Max)
Software	OpenWRT or MTK Linux SDK Driver and Tool Chain
Environmental	Temperature: Operating: 0ºC to 55 ºC, Storage: -20ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 90%
Dimensions	L*W*H = 30*27*3.37mm（±0.2mm）

MT7613 Block Diagram

Customization Options

UniElec have engaged in providing global customers with professional ODM/OEM service of customized stable and

cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,

Software and Package as below customization options for this product. Contact us at sales@unielecinc.com for more

detailed info.

Name	Customization Comments	UniElec Customization
RF TX Power	Change TX POWER as the requirement from 18-23dBm	Supported

Ordering Information

Models	Comments
U7613A-H1	WIFI 5.8G 2×2 11AC
